We are committed to providing you with professional 3 Layer Co-Extrusion Blown Film Machine solutions! Guided by the international and domestic markets, we will continue to develop and expand the scale of the company, improve the quality of 3 Layer Co-Extrusion Blown Film Machine, 3 layer rotary die head film blowing machine, 3 layer co extrusion extruder machine, Wuhan three layer co extrusion machine, 3 layer coextrusion machine manufacturer, three layer extruder machine products, and establish a complete quality assurance system and production management system. We insist that the quality standard of each product must be higher than the industry level to ensure that the product reaches a unified standard and quality.

3 Layer Co-Extrusion Blown Film Machine

INQUIRY NOW

Whatsapp: +8613757718535

PRODUCT INFORMATION

Normal 3 layer coextrusion machine

The 3 layer film blowing line is composed in three extruders and auxiliary parts. It can be used for blowing with high and low density polyethylene(HDPE,LDPE), linear low density polyethylene(LLDPE), metallocene polyethylene, etc. through the extrusion die head to form three-layer complex composite film. With greatly improving the physical properties of the films and an increase of strength, so that the films featured in good obstruct properties and air tightness. If the layers are using different colors, the performance and preservation capabilities of the film can be improved.

360° non-stop rotary die head
Mandrel spiral die head made by CNC Machining Center with mirror polishing
High-quality alloy steel screw and barrel, nitrited, best hardness and corrosion resistance
Co-extrusion central feeding spiral die head
High-speed screen changer with melt pressure gauge
Back-to-Back two station double winder
Auto tension control

<-------- Can Move Left or Right -------->

Model	SJ-50x3/28-BL1400	SJ-50x3/28-BL1600	SJ-60x3/28-BL2200
Co-extrusion Layers	3 Layers	3 Layers	3 Layers
Suitable Material	LDPE, LLDPE, mLLDPE
Max. Folding Film Width	1300mm	1500mm	2000mm
Film Thickness	0.04-0.150mm	0.04-0.15mm	0.04-0.15mm
Max. Output	125kg/hr	150hr/hr	180kg/hr
Screw Diameter	φ50x3	φ50x3	φ60x3
Screw Ratio(L/D)	28:1	28:1	28:1
Max. Screw Speed	120r/min
Main Extruder Motor	22KWx3	22KWx3	30KWx3
Mode of Bubble Cooling	Dual Lip Air Ring	Dual Lip Air Ring	Dual Lip Air Ring
Mode of Reversing	360o Rotary Die Head	360o Rotary Die Head	360o Rotary Die Head
Width of Auxiliary Machine	1400mm	1600mm	2200mm
Winding Mode	Back-to-Back Two Station Double Winder
Max. Winding Diameter	φ600

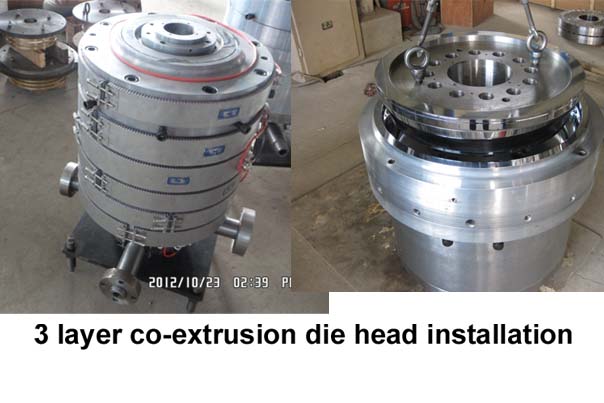

3 layer coextrusion die head installation

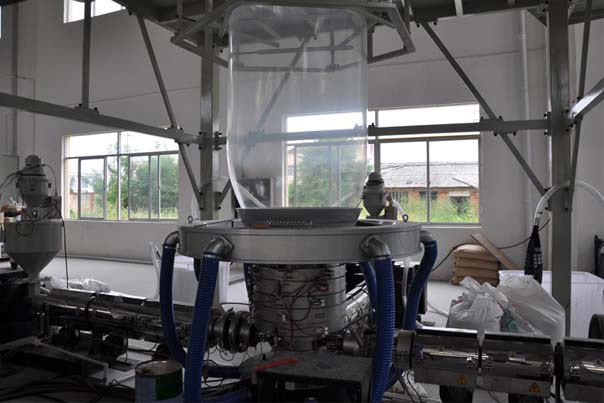

3 layer coextrusion main extruder

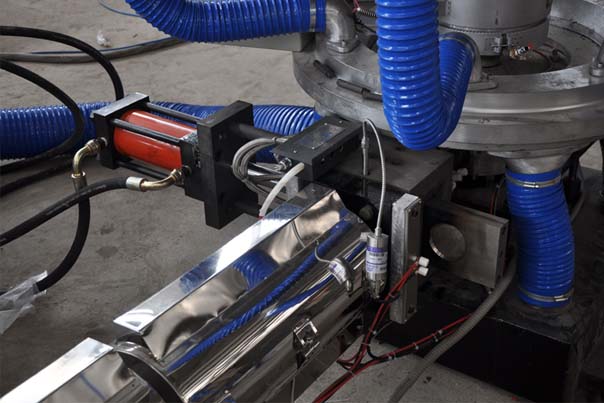

Hydraulic screen changer

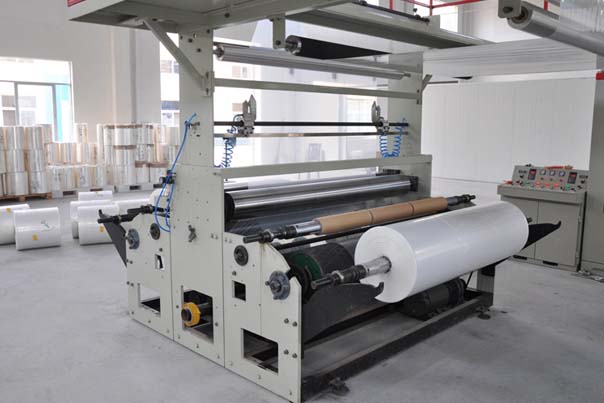

Back to back double winder

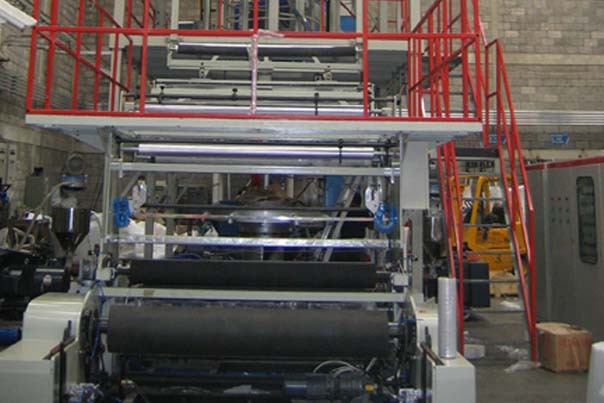

3 layer coextrusion machine
