5 Layer Co-extrusion Blown Film Machine

INQUIRY NOW

Whatsapp: +8613757718535

PRODUCT INFORMATION

To make high barrier film, for meat, edible oil, milk, food packing

5-layer film extrusion machine is mainly used for blowing with material of LDPE, LLDPE, MLLDPE, PA, EVA, EVOH to produce symmetrical and unsymmetrical barrier film with high quality properties such as boiling, preservation, high sealing, high mechanical strength, high transparency and high barrier performance.
The film is widely used in food packaging, liquid packaging, pharmaceutical packaging, medical equipment, chemical products, daily necessities, etc.

High quality mixing screw, nitrited, best hardness and corrosion resistance
Grooved feeding barrel
Multi-layer (5-layer) co-extrusion pan stackable die head
IBC (Internal Bubble Cooling) system
360° horizontal traction rotation haul-off system
Dual-lip high efficiency air ring
Auto tension control system
Dual photoelectric automatic EPC control system
Full auto winding system with computer PLC control
Main extruder and die head heating is computer PLC controlled
High-Speed screen changer with melt pressure gauge
Centralized computer controlled system
Siemens Brand inverter and Siemens serial related products control system

<-------- Can Move Left or Right -------->

Model	SJ-5C-BL1200	SJ-5C-BL1400	SJ-5C-BL1600
Co-extrusion Layers	5 Layers	5 Layers	5 Layers
Suitable Material	PA, EVA, EVOH, LDPE, LLDPE, mLLDPE
Max. Folding Film Width	1100mm	1300mm	1500mm
Film Thickness	0.035-0.15mm	0.035-0.15mm	0.035-0.15mm
Max. Output	120kg/hr	150hr/hr	200kg/hr
Screw Diameter	φ40/ φ40/ φ45/ φ40/ φ40	φ45/ φ45/ φ50/ φ45/ φ45	φ45/ φ50/ φ55/ φ50/ φ45
Screw Ratio(L/D)	28:1, 30:1	28:1, 30:1	28:1, 30:1
Max. Screw Speed	120r/min
Main Extruder Motor	15/15/18.5/15/15KW	18.5/18.5/22/18.5/18.5KW	18.5/22/37/22/18.5KW
Mode of Bubble Cooling	Dual Lip Air Ring IBC (Internal Bubble Cooling)	Dual Lip Air Ring IBC (Internal Bubble Cooling)	Dual Lip Air Ring IBC (Internal Bubble Cooling)
Mode of Reversing	360o Horizontal Reversing Haul-Off	360o Horizontal Reversing Haul-Off	360o Horizontal Reversing Haul-Off
Width of Auxiliary Machine	1200mm	1400mm	1600mm
Winding Mode	Full Automatic Winding
Max. Winding Diameter	φ600
Machine Dimension (LxWxH)	10000x5200x7800mm	10300x6500x8500mm	10500x7000x9200mm
Weight of the Machine	Approx.26000KG	Approx.35000KG	Approx.40000KG
Continuous Gravimetric Measure System	Optional
Automatic Air Ring & Web Guiding System	Optional

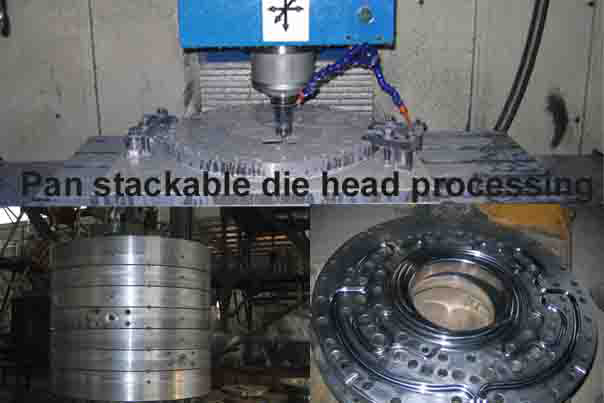

Pan stackable die head processed by CNC machining center

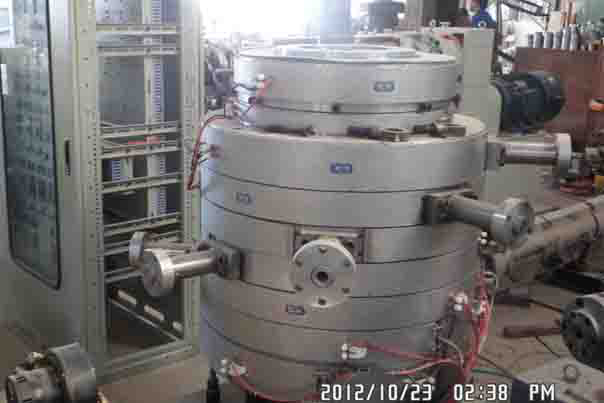

5 layer coextrusion pan stackable die head

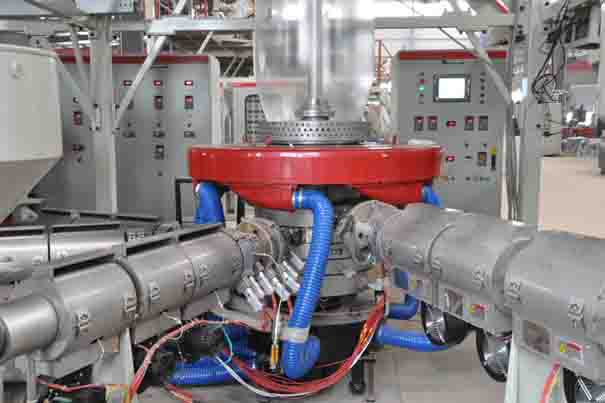

5 layer coextrusion main extruder

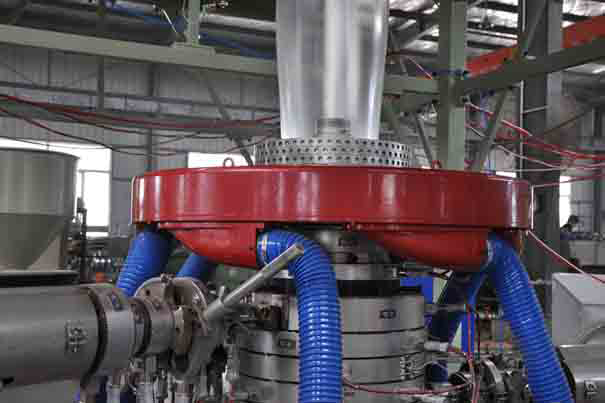

5 layer IBC system

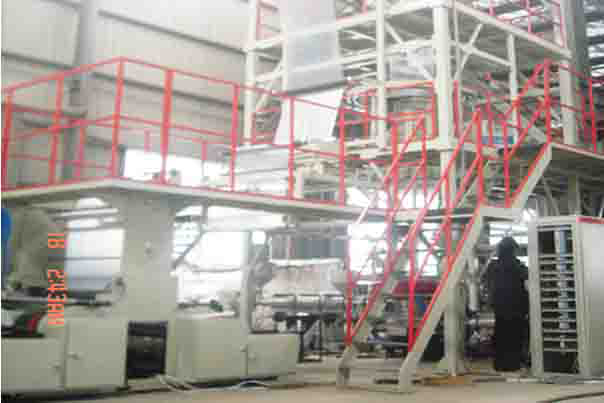

5 layer coextrusion blown film line
